ETL CAN Hitch

J1939 CAN Bridge

Description

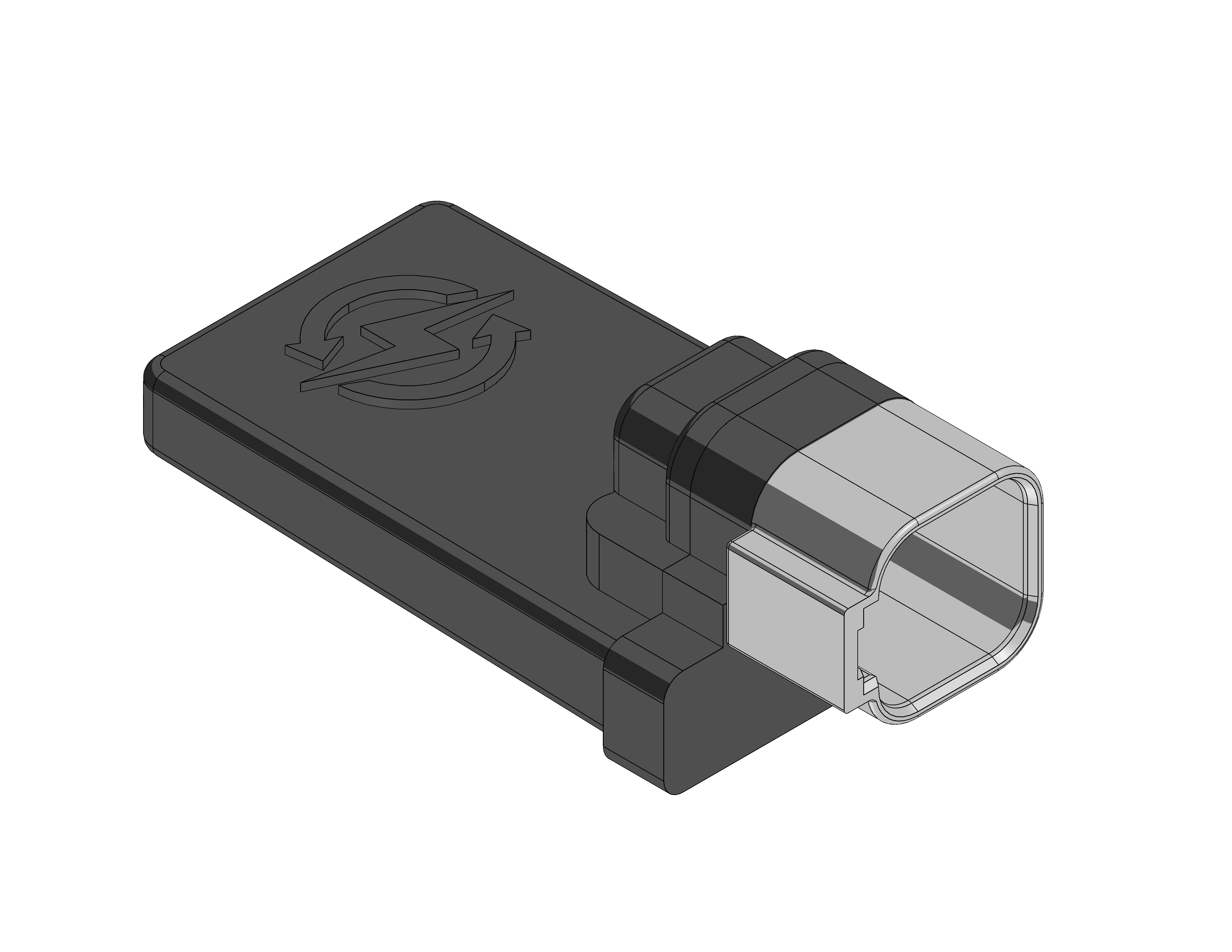

The Electrans Technologies (ETL) CAN Hitch - J1939 CAN Bridge - is a compact and powerful dual-channel CAN interface. It is engineered to act as a link to hitch together two independent CAN bus systems. Built around a powerful automotive-grade microcontroller and two independent CAN transceivers, the ETL CAN Hitch provides a reliable hardware foundation for a wide range of applications. From truck to trailer or machine to control hub. The entire electronic assembly is fully encapsulated in Black Rigid Urethane, creating a solid, sealed, and vibration-resistant module for maximum reliability in harsh environments.

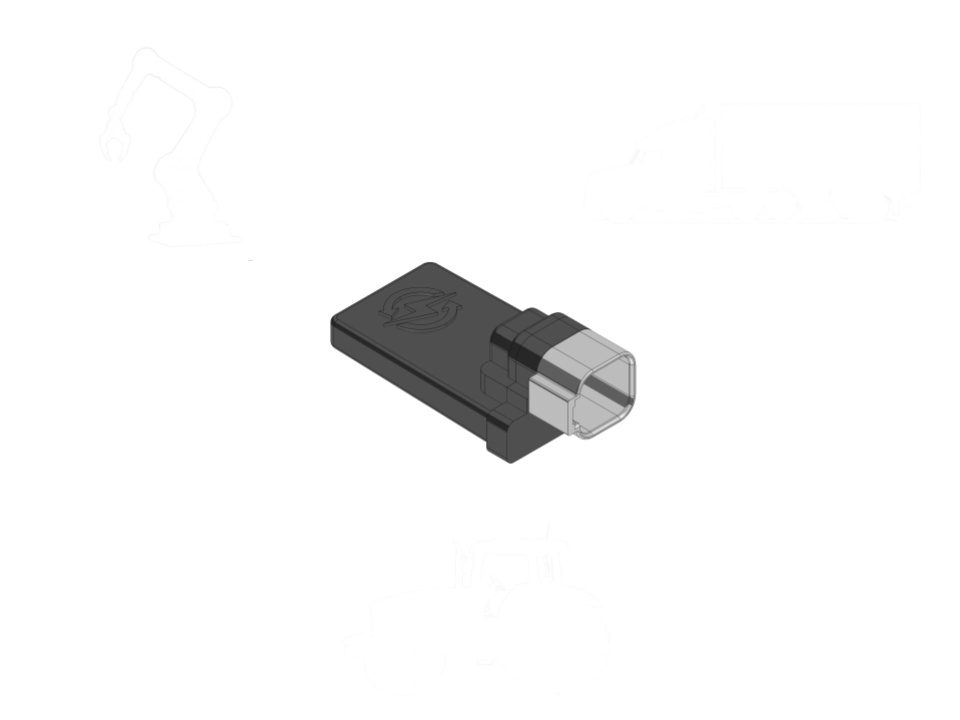

Applications

Seamless Integration (for system integration and diagnostics)
Off-Highway and Agricultural Machinery (e.g. tractors, construction equipment)
Industrial Automation and Control Systems (for bridging factory floor networks)
Mobile Robotics and Autonomous Systems (e.g. AGVs, delivery robots)

Specifications

Channels: 2x CAN Channels (ISO 11898-2:2016)
Protocols: CAN 2.0B (29-bit ID)
Baud Rates: 250 kb/s; or 500 kb/s; or 250kb/s -> 500kb/s (depends on configuration - see Models)
Bus Fault Protection: -58V to +58V
Function: Factory-programmed as a CAN-to-CAN bridge
Operating Voltage: 8V – 26V DC (12V system compatible)
Transient Protection: +60V Load Dump / -50V Reverse Voltage
Operating Temperature: -50°C to +120°C
Enclosure: Black Rigid Urethane
Configuration: Factory-programmed - not user-configurable

Models

The ETL CAN Hitch is delivered as a pre-configured device and is not field-configurable by the end-user. All operational parameters are programmed at Electrans Technology Ltd. based on the specific part number ordered.

Factory-Programmed Parameters Include:

CAN0 Baud Rate (Arbitration and Data phases)
CAN1 Baud Rate (Arbitration and Data phases)
Device Source Address (Node ID)

Name	Model	Part Number
ETL CAN Hitch	250/250 kb/s Bridge	ETL-CB1-2525-S-2
	250/500 kb/s Bridge	ETL-CB1-2550-S-2
	500/500 kb/s Bridge	ETL-CB1-5050-S-2

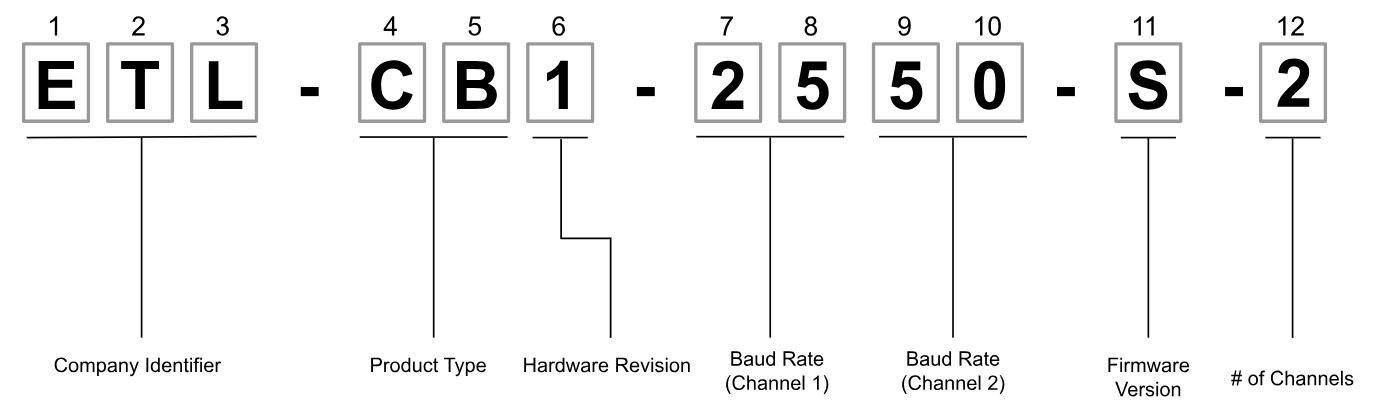

Part Number Breakdown

NOTE: For applications requiring different configurations or custom logic, please contact Electrans Technologies to discuss a custom firmware solution.

Downloads

Product Datasheet: ETL CAN Hitch Datasheet 2025 (PDF)
Product 3D Model: CAN Hitch 3D Model (STEP File Download)

How To Order

Contact us for more information and quotes! or purchase through one of our distributors.
